Product Application List -

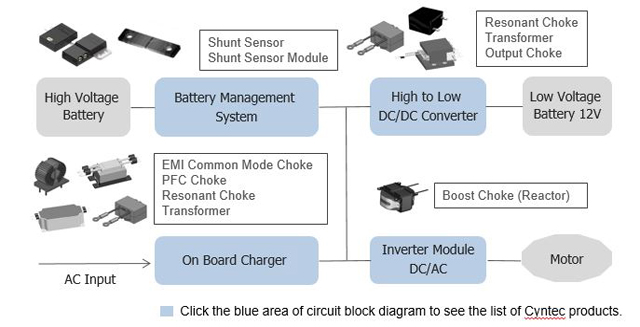

Battery Management System
Power Choke (Automotive-Grade)
| Part Number |
Dimension(mm) |
Inductance Range (μH) |
DCR Range (mΩ) |
Heat Rating Cur. DC Amps. Idc (A) |
Saturation Cur. DC Amps. Isat (A) |
| VCMI104T-MN53 | 10.85 | 10.0 | 3.8 | 15.0 ~ 33.0 | 47 ~ 102.0 | 3.5 ~ 5.1 | 3.6 ~ 6.5 |
| VCHA075D-MS6 | 7.7 | 7.2 | 5.2 | 1.5 ~ 68.0 | 6.1 ~ 255.0 | 1.8 ~ 11.4 | 2.4 ~ 16.3 |
| VCHA085D-MS6 | 8.7 | 8.2 | 5.2 | 1.0 ~ 47.0 | 4.0 ~ 135.0 | 2.6 ~ 18.0 | 4.8 ~ 22.0 |
| VCHA105D-MS6 | 10.85 | 10.0 | 5.2 | 0.68 ~ 100.0 | 1.85 ~ 234.0 | 2.5 ~ 32.0 | 3.0 ~ 46.0 |
| VCHA106T-MS6 | 10.85 | 10.0 | 5.8 | 22.0 ~ 47.0 | 40.0 ~ 75.0 | 3.9 ~ 5.6 | 5.1 ~ 9.2 |
Shunt Sensor (Automotive-Grade)
| Part Number |
Dimension
|
Power Rating(W) |
Resistance Values(Ω) |
Resistance Tolerance |
TCR (ppm/°C) |
| VSPA6918SY | 69.25 | 18.0 | 36 | 0.100 | 5%(J) | 0.100mΩ: ±100 |
| VSMA8420AY | 84.0 | 20.0 | 36 | 0.050 | 5%(J) | 0.050mΩ: ±100 |
