Wearable / IOT

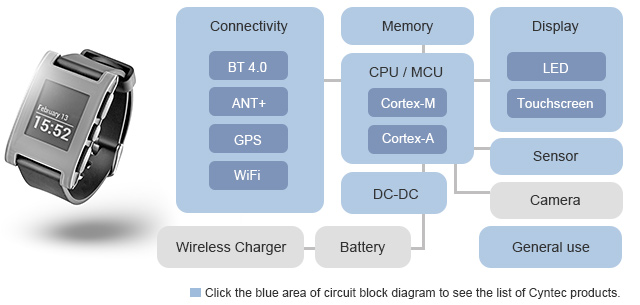

Cyntec’s small size and low DCR power chokes, micro power modules, and miniaturize passive components are perfectly suited used in crowed PCB layout for wearable devices.

Product Application List -

CPU / MCU

Power Choke

Part Number	Dimension(mm)			Inductance Range (μH)	DCR Range (mΩ)	Heat Rating Cur. DC Amps. Idc (A)	Saturation Cur. DC Amps. Isat (A)
HTEG2016FE	2.0	1.6	0.65	0.47	42 ~ 50	3.2 ~ 3.6	4.0 ~ 4.4
HMLQ20160H	2.0	1.6	0.8	1.0~2.2	83 ~ 200	1.6 ~ 2.7	1.8 ~ 2.9
HTEK20161T	2.0	1.6	1.0	0.47~2.2	18~87	2.5~5.4	2.7~6.0
HTEH20121T	2.0	1.2	1.0	0.11~0.47	11~25	4.2~6.1	4.6~7.5
HMLQ20161T	2.0	1.6	1.0	0.24~1.5	18~109	2.05~5.1	2.70~6.70
SDEB12101T	1.25	1.0	1.0	0.22~10	50~1500	0.32~1.9	0.32~2.4
SDEK20121T	2.0	1.2	1.0	4.7	545~654	0.63~0.70	0.72~0.80
SDED20161T	2.0	1.6	1.0	0.47~22	47~2838	0.33~2.6	0.40~2.85
SDEM20161T	2.0	1.6	1.0	0.24~10	20~1010	0.63~5	0.72~6.1
SDEM25201T	2.5	2.0	1.0	0.24~22	19~1200	0.45~4.6	0.6~7.0
SDET25201T	2.5	2.0	1.0	1.0~10	67~609	0.72~1.98	0.65~2.10
HMLQ25201T	2.5	2.0	1.0	0.33 ~ 2.2	16 ~ 102	2.2 ~ 5.5	3.0 ~ 7.3
SDET25201B	2.5	2.0	1.2	0.47~22	24~1050	0.46~3.7	0.50~3.9
HMLQ20161B	2.0	1.6	1.2	0.47~1.0	20~55	3.0~5.1	3.85~5.8
HMLQ25201B	2.5	2.0	1.2	0.22~3.3	8~144	1.55~7.40	1.95~7.70

Power Module

Part Number

Dimension(mm)

Input Voltage(V)

Output Voltage(V)

MUN3C1HR6-FB

2.5

2.3

1.05

2.3~5.0

1.82

MUN12AD01-SG

3.9

2.6

1.7

4.5~16.0

0.8~6.0

Product Application List -

Memory

Power Choke

Part Number	Dimension(mm)			Inductance Range (μH)	DCR Range (mΩ)	Heat Rating Cur. DC Amps. Idc (A)	Saturation Cur. DC Amps. Isat (A)
HTEG2016FE	2.0	1.6	0.65	0.47	42 ~ 50	3.2 ~ 3.6	4.0 ~ 4.4
HMLQ20160H	2.0	1.6	0.8	1.0~2.2	83 ~ 200	1.6 ~ 2.7	1.8 ~ 2.9
HTEK20161T	2.0	1.6	1.0	0.47~2.2	18~87	2.5~5.4	2.7~6.0
HMLQ20161T	2.0	1.6	1.0	0.24~1.5	18~109	2.05~5.1	2.70~6.70
SDEB12101T	1.25	1.0	1.0	0.22~10	50~1500	0.32~1.9	0.32~2.4
SDEK20121T	2.0	1.2	1.0	4.7	545~654	0.63~0.70	0.72~0.80
SDED20161T	2.0	1.6	1.0	0.47~22	47~2838	0.33~2.6	0.40~2.85
SDEM20161T	2.0	1.6	1.0	0.24~10	20~1010	0.63~5	0.72~6.1
SDEM25201T	2.5	2.0	1.0	0.24~22	19~1200	0.45~4.6	0.6~7.0
SDET25201T	2.5	2.0	1.0	1.0~10	67~609	0.72~1.98	0.65~2.10
HMLQ25201T	2.5	2.0	1.0	0.33 ~ 2.2	16 ~ 102	2.2 ~ 5.5	3.0 ~ 7.3
SDET25201B	2.5	2.0	1.2	0.47~22	24~1050	0.46~3.7	0.50~3.9
HMLQ20161B	2.0	1.6	1.2	0.47~1.0	20~55	3.0~5.1	3.85~5.8
HMLQ25201B	2.5	2.0	1.2	0.22~3.3	8~144	1.55~7.40	1.95~7.70

Power Module

Part Number

Dimension(mm)

Input Voltage(V)

Output Voltage(V)

MUN3C1HR6-FB

2.5

2.3

1.05

2.3~5.0

1.82

MUN12AD01-SG

3.9

2.6

1.7

4.5~16.0

0.8~6.0

Product Application List -

Sensor

Power Choke

Part Number	Dimension(mm)			Inductance Range (μH)	DCR Range (mΩ)	Heat Rating Cur. DC Amps. Idc (A)	Saturation Cur. DC Amps. Isat (A)
HTEG2016FE	2.0	1.6	0.65	0.47	42 ~ 50	3.2 ~ 3.6	4.0 ~ 4.4
HMLQ20160H	2.0	1.6	0.8	1.0~2.2	83 ~ 200	1.6 ~ 2.7	1.8 ~ 2.9
HMLQ20161T	2.0	1.6	1.0	0.24~1.5	18~109	2.05~5.1	2.70~6.70
SDEB12101T	1.25	1.0	1.0	0.22~10	50~1500	0.32~1.9	0.32~2.4
SDEK20121T	2.0	1.2	1.0	4.7	545~654	0.63~0.70	0.72~0.80
SDED20161T	2.0	1.6	1.0	0.47~22	47~2838	0.33~2.6	0.40~2.85
SDEM20161T	2.0	1.6	1.0	0.24~10	20~1010	0.63~5	0.72~6.1
SDEM25201T	2.5	2.0	1.0	0.24~22	19~1200	0.45~4.6	0.6~7.0
SDET25201T	2.5	2.0	1.0	1.0~10	67~609	0.72~1.98	0.65~2.10
HMLQ25201T	2.5	2.0	1.0	0.33 ~ 2.2	16 ~ 102	2.2 ~ 5.5	3.0 ~ 7.3
SDET25201B	2.5	2.0	1.2	0.47~22	24~1050	0.46~3.7	0.50~3.9
HMLQ20161B	2.0	1.6	1.2	0.47~1.0	20~55	3.0~5.1	3.85~5.8
HMLQ25201B	2.5	2.0	1.2	0.22~3.3	8~144	1.55~7.40	1.95~7.70

Power Module

Part Number

Dimension(mm)

Input Voltage(V)

Output Voltage(V)

MUN3C1HR6-FB

2.5

2.3

1.05

2.3~5.0

1.82

MUN12AD01-SG

3.9

2.6

1.7

4.5~16.0

0.8~6.0

Product Application List -

Connectivity

Power Choke

Part Number	Dimension(mm)			Inductance Range (μH)	DCR Range (mΩ)	Heat Rating Cur. DC Amps. Idc (A)	Saturation Cur. DC Amps. Isat (A)
HTEG2016FE	2.0	1.6	0.65	0.47	42 ~ 50	3.2 ~ 3.6	4.0 ~ 4.4
HMLQ20160H	2.0	1.6	0.8	1.0~2.2	83 ~ 200	1.6 ~ 2.7	1.8 ~ 2.9
HMLQ20161T	2.0	1.6	1.0	0.24~1.5	18~109	2.05~5.1	2.70~6.70
HMLQ25201T	2.5	2.0	1.0	0.33 ~ 2.2	16 ~ 102	2.2 ~ 5.5	3.0 ~ 7.3
HMLQ20161B	2.0	1.6	1.2	0.47~1.0	20~55	3.0~5.1	3.85~5.8
HMLQ25201B	2.5	2.0	1.2	0.22~3.3	8~144	1.55~7.40	1.95~7.70

Power Module

Part Number

Dimension(mm)

Input Voltage(V)

Output Voltage(V)

MUN12AD01-SG

3.9

2.6

1.7

4.5~16.0

0.8~6.0

Product Application List -

Display

Power Choke

Part Number	Dimension(mm)			Inductance Range (μH)	DCR Range (mΩ)	Heat Rating Cur. DC Amps. Idc (A)	Saturation Cur. DC Amps. Isat (A)
HTEG2016FE	2.0	1.6	0.65	0.47	42 ~ 50	3.2 ~ 3.6	4.0 ~ 4.4
HMLQ20160H	2.0	1.6	0.8	1.0~2.2	83 ~ 200	1.6 ~ 2.7	1.8 ~ 2.9
HMLQ20161T	2.0	1.6	1.0	0.24~1.5	18~109	2.05~5.1	2.70~6.70
SDEK20121T	2.0	1.2	1.0	4.7	545~654	0.63~0.70	0.72~0.80
SDED20161T	2.0	1.6	1.0	0.47~22	47~2838	0.33~2.6	0.40~2.85
SDEM20161T	2.0	1.6	1.0	0.24~10	20~1010	0.63~5	0.72~6.1
SDEM25201T	2.5	2.0	1.0	0.24~22	19~1200	0.45~4.6	0.6~7.0
SDET25201T	2.5	2.0	1.0	1.0~10	67~609	0.72~1.98	0.65~2.10
HTEX20161T	2.0	1.6	1.0	4.7 ~ 10.0	210 ~ 700	0.6 ~ 1.5	0.8 ~ 1.9
HMLQ25201T	2.5	2.0	1.0	0.33 ~ 2.2	16 ~ 102	2.2 ~ 5.5	3.0 ~ 7.3
SDET25201B	2.5	2.0	1.2	0.47~22	24~1050	0.46~3.7	0.50~3.9
HMLQ20161B	2.0	1.6	1.2	0.47~1.0	20~55	3.0~5.1	3.85~5.8
HMLQ25201B	2.5	2.0	1.2	0.22~3.3	8~144	1.55~7.40	1.95~7.70

Product Application List -

Battery

Power Choke

Part Number	Dimension(mm)			Inductance Range (μH)	DCR Range (mΩ)	Heat Rating Cur. DC Amps. Idc (A)	Saturation Cur. DC Amps. Isat (A)
HTEG2016FE	2.0	1.6	0.65	0.47	42 ~ 50	3.2 ~ 3.6	4.0 ~ 4.4
HMLQ20160H	2.0	1.6	0.8	1.0~2.2	83 ~ 200	1.6 ~ 2.7	1.8 ~ 2.9
HMLQ20161T	2.0	1.6	1.0	0.24~1.5	18~109	2.05~5.1	2.70~6.70
HMLQ25201T	2.5	2.0	1.0	0.33 ~ 2.2	16 ~ 102	2.2 ~ 5.5	3.0 ~ 7.3
HMLQ20161B	2.0	1.6	1.2	0.47~1.0	20~55	3.0~5.1	3.85~5.8
HMLQ25201B	2.5	2.0	1.2	0.22~3.3	8~144	1.55~7.40	1.95~7.70

Product Application List -

DC-DC

Power Choke

Part Number	Dimension(mm)			Inductance Range (μH)	DCR Range (mΩ)	Heat Rating Cur. DC Amps. Idc (A)	Saturation Cur. DC Amps. Isat (A)
HTEB20120F	2.0	1.25	0.6	1.0	170 ~ 200	1.0 ~ 1.1	1.71 ~ 1.90
HTEK12100F	1.2	1.0	0.6	0.47	60~72	2.1~2.3	2.3~2.5
HTEG2012FE	2.0	1.2	0.65	1.0 ~ 1.5	85 ~ 180	1.4 ~ 2.5	1.6 ~ 2.4
HTEG2016FE	2.0	1.6	0.65	0.47	42 ~ 50	3.2 ~ 3.6	4.0 ~ 4.4
HTEG20120G	2.0	1.2	0.7	1.0	82 ~ 98	2.3 ~ 2.5	2.2 ~ 2.4
HTEP20120H	2.0	1.2	0.8	0.47~1.0	25 ~ 90	2.1~3.9	3.3~4.8
HTEG20160H	2.0	1.6	0.8	1.0	50 ~ 60	2.8 ~ 3.1	3.2 ~ 3.6
HTEH25200H	2.5	2.0	0.8	4.7	150 ~ 180	1.8 ~ 2.0	1.5 ~ 1.7
HMLQ20160H	2.0	1.6	0.8	1.0~2.2	83 ~ 200	1.6 ~ 2.7	1.8 ~ 2.9
HTEH20120H	2.0	1.2	0.8	0.11~2.2	10~110	1.6~6.1	1.9~7.5
HTEH16080H	1.6	0.8	0.8	0.24~1.0	22~110	1.8~3.9	2.1~4.9
HTEX20161T	2.0	1.6	1.0	4.7 ~ 10.0	210 ~ 700	0.6 ~ 1.5	0.8 ~ 1.9
HMLQ25201T	2.5	2.0	1.0	0.33 ~ 2.2	16 ~ 102	2.2 ~ 5.5	3.0 ~ 7.3
SDEB12101T	1.25	1.0	1.0	0.22~10	50~1500	0.32~1.9	0.32~2.4
SDEK20121T	2.0	1.2	1.0	4.7	545~654	0.63~0.70	0.72~0.80
SDED20161T	2.0	1.6	1.0	0.47~22	47~2838	0.33~2.6	0.40~2.85
SDEM20161T	2.0	1.6	1.0	0.24~10	20~1010	0.63~5	0.72~6.1
SDEM25201T	2.5	2.0	1.0	0.24~22	19~1200	0.45~4.6	0.6~7.0
SDET25201T	2.5	2.0	1.0	1.0~10	67~609	0.72~1.98	0.65~2.10
HTEK20161T	2.0	1.6	1.0	0.47~2.2	18~87	2.5~5.4	2.7~6.0
HTEH20121T	2.0	1.2	1.0	0.11~0.47	11~25	4.2~6.1	4.6~7.5
HMLQ20161T	2.0	1.6	1.0	0.24~1.5	18~109	2.05~5.1	2.70~6.70
HTEH25201T	2.5	2.0	1.0	1.0 ~ 4.7	21 ~ 130	2.0 ~ 5.7	1.7 ~ 5.5
HTEX25201T	2.5	2.0	1.0	4.7 ~ 10.0	200 ~ 575	0.95 ~ 1.60	1.30 ~ 2.15
HTEP25201T	2.5	2.0	1.0	1.0	18 ~ 25	5.2 ~ 5.7	5.0 ~5.5
HMLQ20161B	2.0	1.6	1.2	0.47~1.0	20~55	3.0~5.1	3.85~5.8
HMLQ25201B	2.5	2.0	1.2	0.22~3.3	8~144	1.55~7.40	1.95~7.70
HMLQ32251B	3.2	2.5	1.2	0.47~4.7	19~195	1.55~5.8	2.05~8.2
SDET25201B	2.5	2.0	1.2	0.47~22	24~1050	0.46~3.7	0.50~3.9

Power Module

Part Number

Dimension(mm)

Input Voltage(V)

Output Voltage(V)

MUN3C1BR6-SB

2.5

2.0

1.1

2.7~5.5

1.2

MUN3C1DR6-SB

2.0

2.5

1.1

2.7~5.5

1.35

MUN3C1HR6-SB

2.5

2.0

1.1

2.7~5.5

1.8

MUN3C1HR6-FB

2.5

2.3

1.05

2.3~5.0

1.82

MUN12AD03-SM

6.0

3.5

4.5~16.0

0.6~5.0

MUN24AD03-SM

6.0

3.5

4.5~34.0

5.0~12.0

MUN12AD01-SG

3.9

2.6

1.7

4.5~16.0

0.8~6.0

Product Application List -

General use

Chip Resistor

Part Number

Dimension

Metric(mm)

Inch(mil)

Dim. Power Rating(W)

Resistance Values(Ω)

Resistance Tolerance

TCR (ppm/°C)

RR0204S

0402

01005

1/32W

1~10M

±1%(F)

±200

PFR02S

0402

01005

1/32W

1~10M

±1%(F)

±200

RR0510SE

1005

0402

1/16W

10~1M

±1%(F)

±200

Product Application List -

AC-DC
