Magnetic Component (Automotive-Grade)
Features
● Higher power density and low profile.
● Integrated transformer for LLC Topology
● High current HV-LV DC-DC planar transformer
● Support Bi-Directional V2G & V2L
Application
On Board Charger
HV-LV DC-DC Converter
Capabilities
Customized Service
For more detail information, technical support, or other questions about products, please contact us

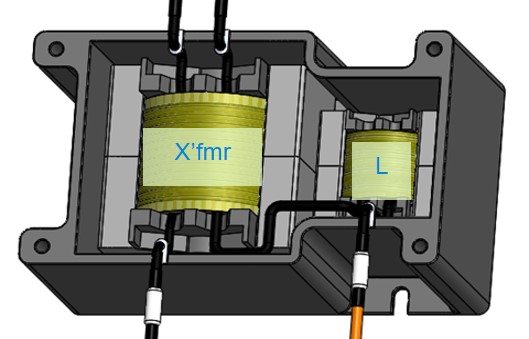

Package level integration
Transformer + Choke Dissipation
* Flexibility & customized design
* Available wide inductance range
* Better thermal performance
* High quality potting process

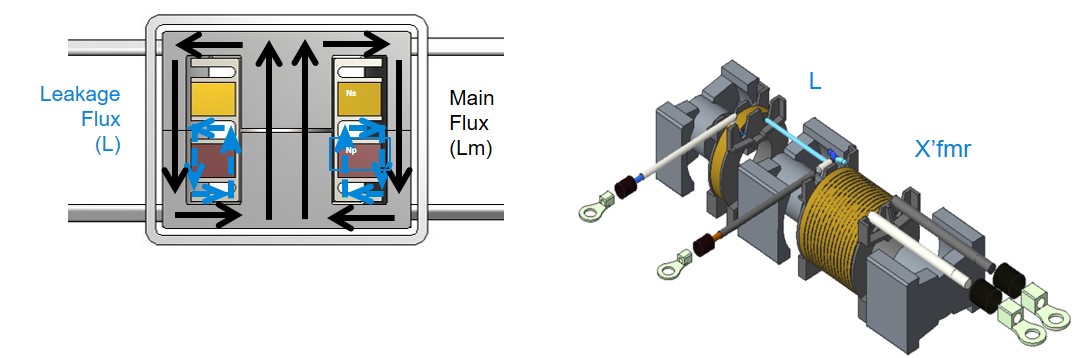

Magnetic integration
Size reduction via core sharing
* Size reduction via core sharing
* Leakage as inductor possible
* Compared with discrete design, size(~25% ↓) and weight(~25%↓)

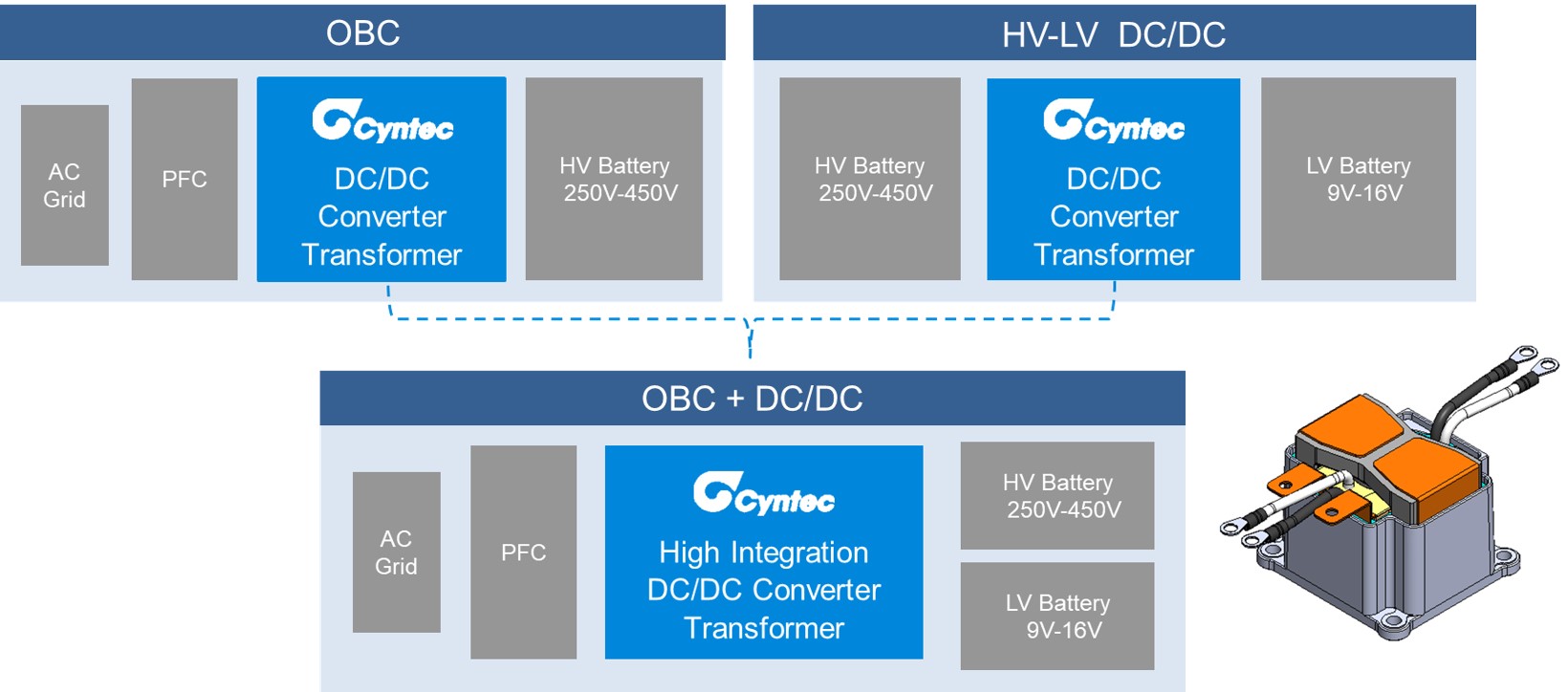

Function integration
Single transformer for HV and LV battery
* Single transformer for HV and LV battery
* Compared with separated OBC and DC/DC structure design, size(~35%↓) and weight(~30%↓)
