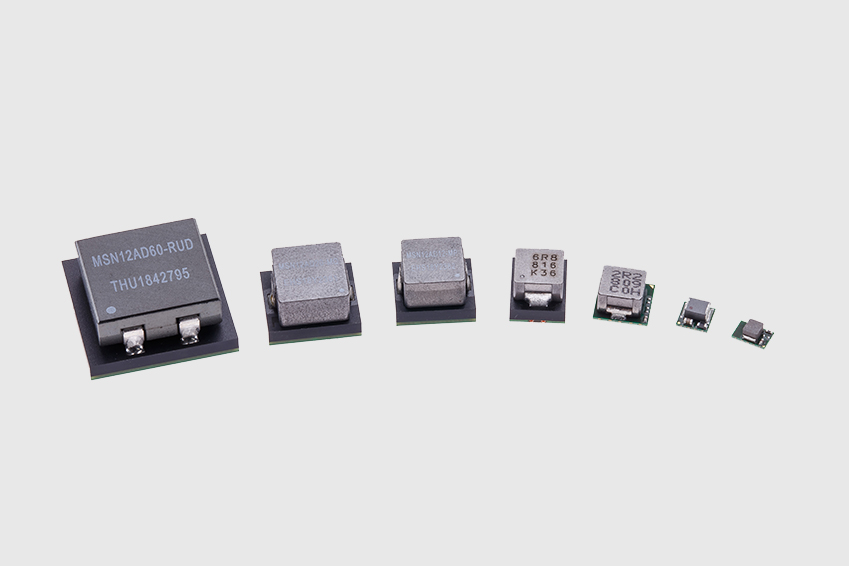

Power Module (Automotive-Grade)
By integrating active and passive components, Cyntec DC-DC modules offer miniaturized solutions for a wide range of applications from consumer to automotive environments. For automotive, space-saving, short-time-to-market, easy-to-use are the major benefits our customer enjoys for their LED lighting, ADAS, and Audio applications.
Features
● Miniaturized DC-DC converter with integrated inductor
● AECQ qualified
● EMI performance verified
● Thermally optimized for high temperature opeartion
Application
LED Lighting, Infotainment, ADAS, and other DC-DC application
Specifications
1A
Part Number Dimension(mm)
L W T
Input Voltage(V) Output Voltage(V) EVB Guide Gerber Files
VUN12AD01-SH3.53.51.74.5~28.03.0~8.5
VUN12AD01-SHC3.53.51.74.5~28.00.8~8.5
Part Number Dimension(mm)
L W T
Input Voltage(V) Output Voltage(V) EVB Guide Gerber Files
VPN12AD1E-FU15.015.08.09.0~30.020.0~45.0
2A
Part Number Dimension(mm)
L W T
Input Voltage(V) Output Voltage(V) EVB Guide Gerber Files
VSN12AD02-MN7.86.05.24.0~32.01.2~8.0
VUN12AD02-SM6.06.02.64.5~28.02.0~8.5
VPN12AD02-FU15.015.08.05.5~40.03.0~40.0
