Autonomous Driving
Cyntec proven design and process support high reliability and miniaturization magnetic and Passive components for ADAS ECU and Camera / Radar Module.

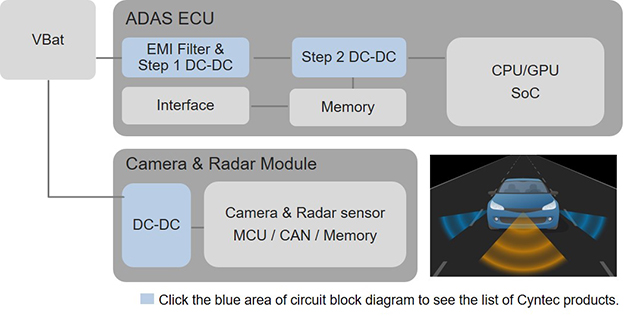

Product Application List -
ADAS ECU EMI Filter & Step 1 DC-DC
Power Choke (Automotive-Grade)
Part Number
Dimension(mm)
Inductance Range (μH)
DCR Range (mΩ)
Heat Rating Cur. DC Amps. Idc (A)
Saturation Cur. DC Amps. Isat (A)
VCHA106T
10.85
10.0
5.8
22.0 ~ 47.0
40.0 ~ 75.0
3.9 ~ 5.6
5.1 ~ 9.2
VCMT104T-MN5
10.85
10.0
3.8
0.19 ~ 47.0
0.96 ~ 188.0
3.0 ~ 34.0
3.2 ~ 55.0
VCHA105D
10.85
10.0
5.4
1.0 ~ 100.0
2.3 ~ 234.0
2.5 ~ 30.0
3.0 ~ 37.0
VCMT136E
13.45
12.6
6.3
1.0 ~ 47.0
1.9 ~ 104.0
4.2 ~ 32.0
3.8 ~ 20.0
VCMT104T-MN53
10.85
10.0
3.8
1.5 ~ 47.0
4.10 ~ 188.0
3.0 ~ 18.7
3.2 ~ 15.4
VCHA054T
5.4
5.2
3.8
2.2 ~ 22.0
21.8 ~ 174.0
2.2 ~ 6.9
2.9 ~ 10.9
Power Module (Automotive-Grade)
Part Number
Dimension
L (mm)
W (mm)
T (mm)
Input Voltage(V)
Output Voltage(V)
EVB Guide
Gerber Files
VUN12AD01-SH
3.5
3.5
1.7
4.5~28.0
3.0~8.5
VPN12AD1E-FU
15.0
15.0
8.0
9.0~30.0
20.0~45.0
VPN12AD02-FU
15.0
15.0
8.0
5.5~40.0
3.0~40.0
Product Application List -
ADAS ECU step 2 DC-DC
Power Choke (Automotive-Grade)
Part Number
Dimension(mm)
Inductance Range (μH)
DCR Range (mΩ)
Heat Rating Cur. DC Amps. Idc (A)
Saturation Cur. DC Amps. Isat (A)
VCHA042A
4.2
4.0
2.1
0.33 ~ 10
5.8 ~ 129.0
2.2 ~ 10.9
2.0 ~ 13.5
VCMT053T
5.45
5.25
3.0
0.68 ~ 15
8.6 ~ 196.0
1.8 ~ 11.1
1.9 ~ 11.7
VCMT063T
6.95
6.6
2.8
0.47 ~ 22.0
3.85 ~ 174.0
2.5 ~ 17.0
2.4 ~ 16.3
VCHA075D
7.7
7.2
5.2
1.5 ~ 68.0
6.1 ~ 255.0
1.8 ~ 11.4
2.4 ~ 16.3
VCHA085D
8.7
8.2
5.2
1.0 ~ 47.0
4.0 ~ 135.0
2.6 ~ 15.5
4.8 ~ 22.0
VCHA054T
5.4
5.2
3.8
2.2 ~ 22.0
21.8 ~ 174.0
2.2 ~ 6.9
2.9 ~ 10.9
Power Module (Automotive-Grade)
Part Number
Dimension
L (mm)
W (mm)
T (mm)
Input Voltage(V)
Output Voltage(V)
EVB Guide
Gerber Files
VUN12AD01-SH
3.5
3.5
1.7
4.5~28.0
3.0~8.5
VPN12AD1E-FU
15.0
15.0
8.0
9.0~30.0
20.0~45.0
VUN12AD01-SHC
3.5
3.5
1.7
4.5~28.0
0.8~8.5
VPN12AD02-FU
15.0
15.0
8.0
5.5~40.0
3.0~40.0
Product Application List -
DC-DC for Camera and Radar
Power Choke (Automotive-Grade)
Part Number
Dimension(mm)
Inductance Range (μH)
DCR Range (mΩ)
Heat Rating Cur. DC Amps. Idc (A)
Saturation Cur. DC Amps. Isat (A)
VCTA20161B
2.0
1.6
1.2
0.15 ~ 6.8
11.0 ~ 670.0
0.7 ~ 6.1
1.0 ~ 7.5
VCTA25201B
2.5
2.0
1.2
0.1 ~ 10.0
9.0 ~ 530.0
0.8 ~ 7.7
1.3 ~ 12.8
VCTA32251B
3.2
2.5
1.2
0.15 ~ 10.0
10.0 ~ 400.0
1.0 ~ 6.8
1.3 ~ 11.6
VCHA042A
4.2
4.0
2.1
0.33 ~ 10
5.8 ~ 129.0
2.2 ~ 10.9
2.0 ~ 13.5
VCMT053T
5.45
5.25
3.0
0.68 ~ 15
8.6 ~ 196.0
1.8 ~ 11.1
1.9 ~ 11.7
VCMT063T
6.95
6.6
2.8
0.47 ~ 22.0
3.85 ~ 174.0
2.5 ~ 17.0
2.4 ~ 16.3
VCHA075D
7.7
7.2
5.2
1.5 ~ 68.0
6.1 ~ 255.0
1.8 ~ 11.4
2.4 ~ 16.3
VCHA085D
8.7
8.2
5.2
1.0 ~ 47.0
4.0 ~ 135.0
2.6 ~ 15.5
4.8 ~ 22.0
VCMT104T-MN5
10.85
10.0
3.8
0.19 ~ 47.0
0.96 ~ 188.0
3.0 ~ 34.0
3.2 ~ 55.0
VCHA105D
10.85
10.0
5.4
1.0 ~ 100.0
2.3 ~ 234.0
2.5 ~ 30.0
3.0 ~ 37.0
VCMT104T-MN53
10.85
10.0
3.8
1.5 ~ 47.0
4.10 ~ 188.0
3.0 ~ 18.7
3.2 ~ 15.4
VCHA054T
5.4
5.2
3.8
2.2 ~ 22.0
21.8 ~ 174.0
2.2 ~ 6.9
2.9 ~ 10.9
Power Module (Automotive-Grade)
Part Number
Dimension
L (mm)
W (mm)
T (mm)
Input Voltage(V)
Output Voltage(V)
EVB Guide
Gerber Files
VUN12AD01-SH
3.5
3.5
1.7
4.5~28.0
3.0~8.5
VPN12AD1E-FU
15.0
15.0
8.0
9.0~30.0
20.0~45.0
VUN12AD01-SHC
3.5
3.5
1.7
4.5~28.0
0.8~8.5
VPN12AD02-FU
15.0
15.0
8.0
5.5~40.0
3.0~40.0
