Automotive Lighting
Cyntec proven design and process support high reliability and high thermal characteristics magnetic and Passive components for Automotive market.

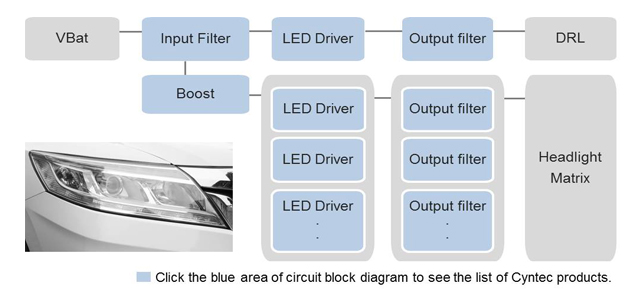

Product Application List -
Input filter
Power Choke (Automotive-Grade)
Part Number Dimension(mm) Inductance Range (μH) DCR Range (mΩ) Heat Rating Cur. DC Amps. Idc (A) Saturation Cur. DC Amps. Isat (A)
VCTA32251B3.22.51.20.15~6.810.0~300.01.3~6.82.0~11.6
VCHA042A4.24.02.10.33~105.8~129.02.2~10.92.0~13.5
VCMT053T5.455.253.00.68~158.6~196.01.8~11.11.9~11.7
VCMT063T6.956.63.00.47~223.85~1742.5~17.02.4~16.3
VCMT104T10.8510.04.00.47~471.53~1883~34.03.2~21.0
VCMI105T10.8510.05.010~6823.5~2112.9~9.73.9~12.0
VCHA105D10.8510.05.41.0~682.3~1523.0~303.6~37
VCMT136E13.4512.66.31.0~471.9~1044.2~32.03.8~20.0
VCMI104T10.8510.04.015~3347~102.03.5~5.13.6~6.5

Product Application List -
BOOST
Power Choke (Automotive-Grade)
Part Number Dimension(mm) Inductance Range (μH) DCR Range (mΩ) Heat Rating Cur. DC Amps. Idc (A) Saturation Cur. DC Amps. Isat (A)
VCTA32251B3.22.51.20.15~6.810.0~300.01.3~6.82.0~11.6
VCMT104T10.8510.04.00.47~471.53~1883~34.03.2~21.0
VCMI105T10.8510.05.010~6823.5~2112.9~9.73.9~12.0
VCHA105D10.8510.05.41.0~682.3~1523.0~303.6~37
VCMT136E13.4512.66.31.0~471.9~1044.2~32.03.8~20.0
VCHA106T10.8510.05.822~4740~753.9~5.65.1~9.2
VCMI104T10.8510.04.015~3347~102.03.5~5.13.6~6.5

Product Application List -
LED Driver
Power Choke (Automotive-Grade)
Part Number Dimension(mm) Inductance Range (μH) DCR Range (mΩ) Heat Rating Cur. DC Amps. Idc (A) Saturation Cur. DC Amps. Isat (A)
VCTA32251B3.22.51.20.15~6.810.0~300.01.3~6.82.0~11.6
VCHA042A4.24.02.10.33~105.8~129.02.2~10.92.0~13.5
VCMT053T5.455.253.00.68~158.6~196.01.8~11.11.9~11.7
VCMT063T6.956.63.00.47~223.85~1742.5~17.02.4~16.3
VCHA075D7.77.25.41.5~686.1~2551.8~11.42.4~16.3
VCHA085D8.78.25.41.0~474.0~1352.6~15.54.8~22.0
VCMT104T10.8510.04.00.47~471.53~1883~34.03.2~21.0
VCMI105T10.8510.05.010~6823.5~2112.9~9.73.9~12.0
VCHA105D10.8510.05.41.0~682.3~1523.0~303.6~37
VCMT136E13.4512.66.31.0~471.9~1044.2~32.03.8~20.0
VCHA106T10.8510.05.822~4740~753.9~5.65.1~9.2
VCMI104T10.8510.04.015~3347~102.03.5~5.13.6~6.5

Power Module (Automotive-Grade)
Part Number Dimension
L (mm) W (mm) T (mm)
Input Voltage(V) Output Voltage(V) EVB Guide Gerber Files
VUN12AD01-SH3.53.51.74.5~28.02.0~8.5
VSN12AD02-MN7.86.05.24.0~32.01.2~8.0

Current Sensing Resistor (Automotive-Grade)
Part Number Dimension
Metric(mm) Inch(mil)
Dim. Power Rating(W) Resistance Values(Ω) Resistance Tolerance TCR (ppm/°C)
VSRP1206S1321612061W0.010~1.000±1%(F) ±2%(G) ±5%(J)0.010~0.015Ω: ±200 0.016~1.000Ω: ±100
VSRP0805SD201208051/2W0.05~1±1%(F) ±2%(G) ±5%(J)0.05~0.099:±200 0.10~1.000:±100
VSRP0508WD122005081/2W0.020~0.450±1%(F) ±2%(G) ±5%(J)0.02~0.45: ±150
VSML1206SD321612061/2W0.001~0.200±1%(F) ±2%(G) ±5%(J)0.001~0.010Ω: ± 75 0.011~0.200Ω: ± 50

Product Application List -
Output filter
Power Choke (Automotive-Grade)
Part Number Dimension(mm) Inductance Range (μH) DCR Range (mΩ) Heat Rating Cur. DC Amps. Idc (A) Saturation Cur. DC Amps. Isat (A)
VCTA32251B3.22.51.20.15~6.810.0~300.01.3~6.82.0~11.6
VCHA042A4.24.02.10.33~105.8~129.02.2~10.92.0~13.5
