Resistor & Shunt Sensor
>
Chip Resistor

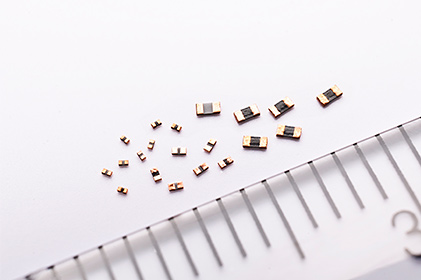

Chip Resistor
Cyntec offers various series of chip resistors based on thin film and thick film types to apply to all electronic equipment.
Features
The feature of chip resistor is high precision and miniaturization size that down to 01005 size.
Application
Computer, Mobile/Handheld, Networking/Telecom, and others Electronic Devices, etc.
Specifications
008004
09005
01005
0201
0402
0603
0805
1206
008004
Part Number
Dimension
(mm)
(mil)
Dim. Power Rating(W)
Resistance Values(Ω)
Resistance Tolerance
TCR (ppm/°C)
CRNHYSE
0201
008004
1/70W
10~1M
±5%(J)
±200
09005
Part Number
Dimension
(mm)
(mil)
Dim. Power Rating(W)
Resistance Values(Ω)
Resistance Tolerance
TCR (ppm/°C)
RR0203S
03015
09005
1/50W
10~1M
±1%(F)
±200
01005
Part Number
Dimension
(mm)
(mil)
Dim. Power Rating(W)
Resistance Values(Ω)
Resistance Tolerance
TCR (ppm/°C)
CRTFQSS
0402
01005
1/32W
1~2M
±1%(F)
±200
PFR02S
0402
01005
1/32W
1~10M
±1%(F)
±200
RR0204S
0402
01005
1/32W
1~10M
±1%(F)
±200
RR0204SE
0402
01005
1/32W
10~1M
±1%(F)
±200
0201
Part Number
Dimension
(mm)
(mil)
Dim. Power Rating(W)
Resistance Values(Ω)
Resistance Tolerance
TCR (ppm/°C)
CRTFKSR
0603
0201
1/20W
1~2M
±0.5%(D) ±1%(F)
±200
PFR03S
0603
0201
1/20W
1~10M
±0.5%(D) ±1%(F)
±200
RR0306S
0603
0201
1/20W
1~10M
±0.5%(D) ±1%(F)
±200
RR0306SE
0603
0201
1/20W
10~1M
±1%(F)
±200
0402
Part Number
Dimension
(mm)
(mil)
Dim. Power Rating(W)
Resistance Values(Ω)
Resistance Tolerance
TCR (ppm/°C)
CRTFHXQ
1005
0402
1/16W
1~2M
±0.5%(D) ±1%(F)
±50
PFR05
1005
0402
1/16W
1~10M
±0.5%(D) ±1%(F)
±25
RR0510
1005
0402
1/16W
1~10M
±0.5%(D) ±1%(F)
±25
RR0510SE
1005
0402
1/16W
10~1M
±1%(F)
±200
HPFR05S
1005
0402
1/5W 1/8W
1~1K
±1%(F)
±200
0603
Part Number
Dimension
(mm)
(mil)
Dim. Power Rating(W)
Resistance Values(Ω)
Resistance Tolerance
TCR (ppm/°C)
HPFR08S
1608
0603
2/5W
1~10K
±1%(F)
±200
0805
Part Number
Dimension
(mm)
(mil)
Dim. Power Rating(W)
Resistance Values(Ω)
Resistance Tolerance
TCR (ppm/°C)
HPFR12S
2012
0805
1/2W
1~3K
±0.5%(D) ±1%(F)
±200
1206
Part Number
Dimension
(mm)
(mil)
Dim. Power Rating(W)
Resistance Values(Ω)
Resistance Tolerance
TCR (ppm/°C)
HPFR16S
3216
1206
1W
1~1K
±0.5%(D) ±1%(F)
±150
