Highly Integrated 60A PMBus Modules for High Performance Computing
Cyntec offers space-saving, high-efficiency DC-DC modules for applications from wearable electronics to large-scale data-center. With our proprietary 3D system-in-package technology, switching regulators are integrated with in-house optimized passive components within a miniaturized footprint. For high performance computing, core power demanding for >100A with limited board space for DC-DC is the common challenge for system designers. Telemetry reporting of V/I/temperature info and dynamically controlling the Vout is necessary in terms of system stability and efficiency. Our latest 12Vin 60A PMBus modules, which are scalable up to 240A output current, serve the purpose. High performance inductors are integrated in a miniaturized 16mm x 16mm footprint with 90% peak efficiency. With a board range of module products, we offer a total DC-DC solution to the multi-rail requirements of FPGAs and ASICs.

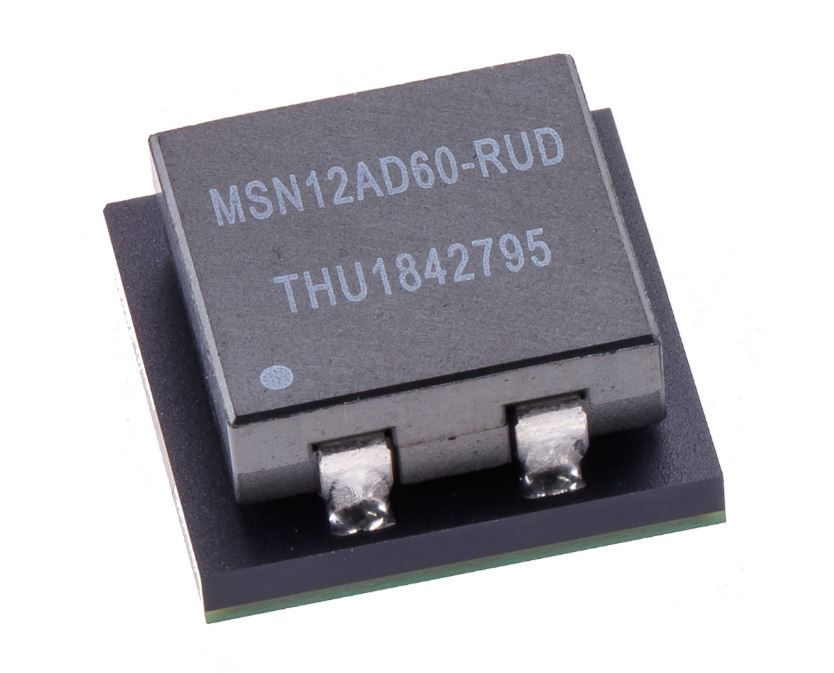

60A Digital Power Module with PMBus
- Highest output current with PMBus
- 90% peak efficiency
- Capable for parallel operation up to 4x (240 Iout)
- Precise measurement & telemetry reporting of individual modules: Vout, Iout, Vin, Eout, temperature, duty-cycle, Fsw
- Vin range 8V to 15V
- Vout range 0.6V to 1.8V (max. 60A Iout)
- Compact BGA package 16x16x7.5mm
- Configurable digital loop compensation, protection, and warnings
