Protector

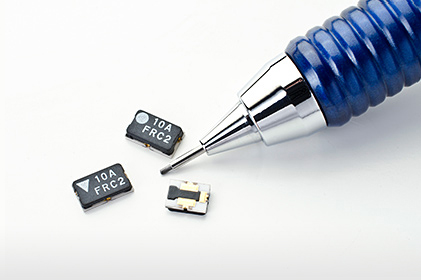

Cyntec has developed and produced a complete series of low profile and high stability FR-Protector (Fuse-Resistance Protector)with two protection functions for main application in lithium-ion battery pack including OCP (Over Current Protection) and OVP (Over Voltage Protection) to ensure the safety of battery module. The maximum re-flow temperature for FR-Protector is 260℃, which canbe assembled by SMT and get effectively respond in a timely manner to the ever changing market demands. For committing to the continuous improvement on the quality and reliability of our products, FR-Protector receives UL Product Certification in recognition of our outstanding technology and product quality.
Features
● Overcurrent protector: protect natteries from abnormal overcurrent behavior
● Overvoltage protector: protect natteries from abnormal overvoltage behavior
● Surface mountable fuse
● Halogen free
● Fast response time
Application
Notebook, Tablet PC, Ultrabook, Automotive, Household machine tool, Camera, Printer, Smartphone, etc.
Specifications
Part Number Dimension
L (mm) W (mm) T (mm)
Operating Voltage Heater Resistance Operating Electric Power
FC-4030-12A-C1-C4.03.00.853.00~5.00V1.00~1.50Ω6.0~39W
FD-4030-12A-C1-C4.03.00.853.00~4.50V0.63~1.35Ω6.0~39W
FD-4030-12A-C2-C4.03.00.854.00~9.00V2.00~2.65Ω6.0~40W
FD-4030-12A-C3-C4.03.00.857.40~14.0V5.00~9.00Ω6.0~39W
FD-4030-12A-C4-C4.03.00.8510.5~19.6V9.80~18.0Ω6.0~39W
FR-4030-12A-C1-C4.03.01.053.00~4.50V0.63~1.35Ω6.0~39W
FR-4030-12A-C2-C4.03.01.054.00~9.00V2.00~3.20Ω6.0~48W
FR-4030-12A-C3-C4.03.01.057.00~14.0V5.00~9.00Ω6.0~39W
FR-4030-12A-C4-C4.03.01.0510.5~19.6V9.80~18.0Ω6.0~39W
Part Number Dimension
L (mm) W (mm) T (mm)
Operating Voltage Heater Resistance Operating Electric Power
FC-5432-10A-C1-C5.43.21.054.0~7.0V1.25~2.65Ω6.0~39.0W
FC-5432-10A-C2-C5.43.21.054.0~9.0V1.7~2.65Ω6.0~48.0W
FC-5432-10A-C3-C5.43.21.057.0~14.0V5.0~8.0Ω6.0~39.0W
FC-5432-10A-C4-C5.43.21.0510.5~19.5V9.8~16.5Ω6.0~39.0W
FC-5432-10A-H2-C5.43.21.055.0~10.0V2.5~4.2Ω6.5~40.0W
FC-5432-12A-C1-C5.43.21.054.0~7.0V1.25~2.65Ω6.0~39.0W
FC-5432-12A-C2-C5.43.21.054.0~9.0V1.7~2.65Ω6.0~48.0W
FC-5432-12A-C3-C5.43.21.057.0~14.0V5.0~8.0Ω6.0~39.0W
FC-5432-12A-C4-C5.43.21.0510.5~19.5V9.8~16.5Ω6.0~39.0W
FC-5432-12A-H3-C5.43.21.058.0~15.0V7.0~11.0Ω6.5~40.0W
FC-5432-12A-L1-C5.43.21.053.0~5.0V0.63~1.35Ω6.5~40W
FC-5432-15A-C1-C5.43.21.054.0~7.0V1.0~2.5Ω6.5~35.0W
FC-5432-15A-C3-C5.43.21.057.0~14.0V5.0~9.0Ω6.5~35.0W
FC-5432-15A-C4-C5.43.21.0510.5~19.5V10.0~18.0Ω6.5~35.0W
FC-5432-15A-C5-C5.43.21.0514.4~23.5V15.8~31.8Ω6.5~35.0W
FR-5432-5A-C2-B5.43.21.354.0~9.0V3.22±0.32Ω4.5~28.0W
Part Number Dimension
L (mm) W (mm) T (mm)
Operating Voltage Heater Resistance Operating Electric Power
FR-9550-30A-C01-B9.55.02.04.0~6.6V0.8~1.2Ω13~53W
FR-9550-30A-C03-B9.55.02.08.4~13.2V3.2~5.2Ω13~53W
FR-9550-30A-C04-B9.55.02.011.1~18.4V6.3~9.3Ω13~53W
FR-9550-30A-C05-B9.55.02.014.0~23.4V10.0~15.0Ω13~53W
FR-9550-30A-C07-B9.55.02.020.2~31.5V18.8~31.2Ω13~53W
FR-9550-30A-C10-B9.55.02.028.0~46.9V40.0~60.0Ω13~53W
FR-9550-30A-C14-B9.55.02.039.6~62.0V72.4~120.6Ω13~53W
