Power Module

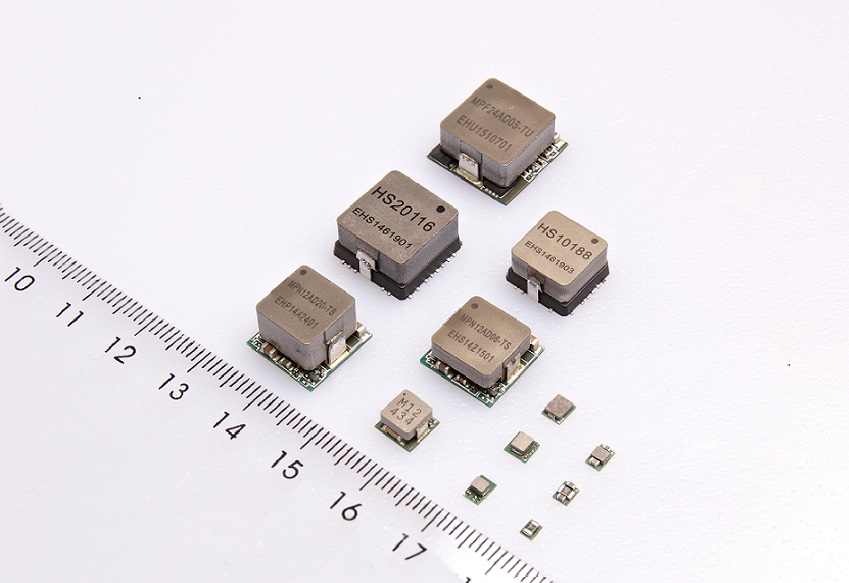

Cyntec Power Modules are Point of Load (POL) DC-DC converters integrating controller chips, chokes and I/O capacitors into a single power management package for step-down(buck) or step-up(boost) applications. The low profile and compact size enables significant saving of board space, high efficiency enhances application performance, and design structure allows automated assembly by standard surface mount equipment. In service, Cyntec provides strong and timely design and development support for customized products and packages.
Features
● Low Profile
● High power density
● High performance
Application
● Miniature portable (1A, 2A, 3A): SSD, Smartphone, USB, DSP, MCU, Wearable, Video Surveillance, Small Cell, Industrial Control Circuit
● Industrial (5A, 6A, 12A, 20A): video system, video surveillance, base-station, FPGA, networking, server, switching, storage, IPC, industrial, equipment
Specifications
0.2A
Part NumberDimension(mm)
LWT
Input Voltage(V)Output Voltage(V)EVB GuideGerber Files
MMS0505R2-TT19.66.010.04.5~5.55.0


0.6A
Part NumberDimension(mm)
LWT
Input Voltage(V)Output Voltage(V)EVB GuideGerber Files
MUN3C1BR6-SB2.52.01.12.7~5.51.2
MUN3C1DR6-SB2.02.51.12.75~5.51.35
MUN3C1ER6-SB2.52.01.12.7~5.51.5
MUN3C1HR6-SB2.52.01.12.7~5.51.8
MUN3C1HR6-FB2.52.31.052.3~5.51.82


1A
Part NumberDimension(mm)
LWT
Input Voltage(V)Output Voltage(V)EVB GuideGerber Files
MUN3CAD01-SC2.92.31.052.7~5.50.8~4.0
MUN12AD01-SG3.92.61.74.5~16.00.8~6.0
MUN12AD01-SH3.53.51.74.5~17.01.0~5.0
MUN24AD01-SH3.53.51.74.5~28.02.0~8.5
MUN123C01-SGA3.92.61.74.5~16.03.3
MUN123C01-SGB3.92.61.74.5~16.03.3


2A
Part NumberDimension(mm)
LWT
Input Voltage(V)Output Voltage(V)EVB GuideGerber Files
MSN05AD02-SQ 10.09.06.54.0~8.012.0~16.0


3A
Part NumberDimension(mm)
LWT
Input Voltage(V)Output Voltage(V)EVB GuideGerber Files
MUN3CAD03-SF3.03.01.32.75~5.50.6~3.3
MUN3CAD03-SH3.53.51.72.75~5.50.6~3.3
MUN12AD03-SE 3.02.81.54.5~17.00.6~5.5
MUN12AD03-SH3.53.51.74.5~16.00.6~5.0
MUN12AD03-SM6.06.03.54.5~16.00.6~5.0
MUN20AD03-SH3.53.51.58.0~24.00.6~5.0
MUN24AD03-SM6.06.03.58.0~34.05.0~12.0
MUN20AD03-SM6.06.03.59.0~24.00.6~5.5
MSN24VD03-GR9.48.66.35.1~24.05.1~20.0


5A
Part NumberDimension(mm)
LWT
Input Voltage(V)Output Voltage(V)EVB GuideGerber Files
MUN12AD05-SMFH6.06.03.54.5~20.01.9~5.0
MUN12AD05-SMFL6.06.03.54.5~20.00.6~1.8


6A
Part NumberDimension(mm)
LWT
Input Voltage(V)Output Voltage(V)EVB GuideGerber Files
MPN12AD06-TS12.1912.195.44.5~16.00.6~5.5
MUN12AD06-SM6.06.03.57.0~24.00.6~15.0


10A
Part NumberDimension(mm)
LWT
Input Voltage(V)Output Voltage(V)EVB GuideGerber Files
HM10107B15.015.03.71.0~15.00.6~5.5


12A
Part NumberDimension(mm)
LWT
Input Voltage(V)Output Voltage(V)EVB GuideGerber Files
MPN12AD12-TS12.1912.198.44.5~16.00.6~5.5
MSN12AD12-MP8.67.56.54.5~16.00.6~5.5


20A
Part NumberDimension(mm)
LWT
Input Voltage(V)Output Voltage(V)EVB GuideGerber Files
MSN12AD20-MQ10.09.06.54.5~15.00.6~5.5
MPN12AD20-TS12.1912.198.44.5~14.50.6~5.0
HS2011614.514.57.454.5~20.00.8~5.5


25A
Part NumberDimension(mm)
LWT
Input Voltage(V)Output Voltage(V)EVB GuideGerber Files
MSN12VD25-FQ12.07.010.14.5~14.00.6~5.5


30A
Part NumberDimension(mm)
LWT
Input Voltage(V)Output Voltage(V)EVB GuideGerber Files
MSN12VD30-FR 14.27.86.354.5~14.00.5~2.5


40A
Part NumberDimension(mm)
LWT
Input Voltage(V)Output Voltage(V)EVB GuideGerber Files
MSN12AD40-RUD16.016.08.04.5~15.00.6~1.8


60A
Part NumberDimension(mm)
LWT
Input Voltage(V)Output Voltage(V)EVB GuideGerber Files
MSN12AD60-RUD16.016.08.08.0~15.00.6~1.8


Auto-grade
Part NumberDimension(mm)
LWT
Input Voltage(V)Output Voltage(V)EVB GuideGerber Files
VUN12AD01-SH3.53.51.74.5~28.02.0~8.5
VSN12AD02-MN7.86.05.24.0~32.01.2~8.0
